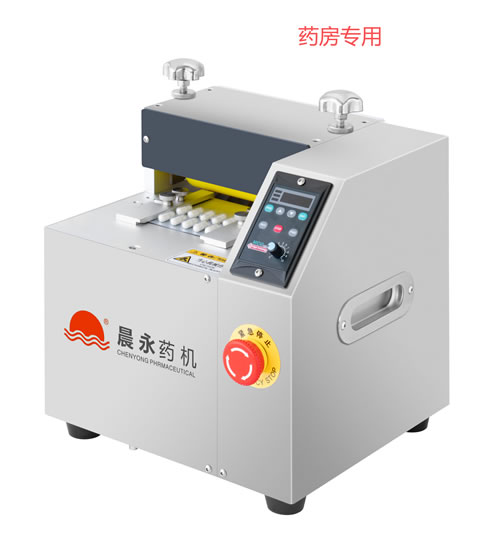

Model PY-50 Tablet Rejector (Pharmacy-Specific)

I. Equipment Purpose:
The pharmaceutical tablet recovery machine is an automated device designed to extract pills from defective aluminum-plastic blister packs. It features a 304-grade stainless steel housing and integrates a micro-motor, a single-stage reduction gearbox, a roller assembly, and a guide plate/blocking rubber pad assembly, all equipped with electrical braking and safety interlock switches. The micro-motor and gearbox drive a set of rollers that simulate the manual pill-peeling motion, separating the blister contents from the defective packaging; guide plates and rubber pads then facilitate the separate collection of the pills and the packaging waste.
II. Technical Features:
1. Aesthetic appeal: Sleek, simple, and uncluttered design that is easy to clean; user-friendly, convenient, and safe to operate.
2. High-quality materials: Constructed from 304 stainless steel; utilizes imported PU rollers that are wear-resistant, durable, and shed-free, ensuring maximum protection against secondary contamination of the medication.
3. Precision engineering: High operational precision and excellent performance; ensures complete extraction of capsules and tablets from blister packs without crushing or damaging them, resulting in a long equipment service life.
4. Optimized design: Meticulous attention to detail with a focus on the end-user experience; safe operation and easy mobility. Adjustments for blister packs of varying sizes and layouts are simple and require no mold changes, making it highly adaptable to actual workshop needs.
5. Proven performance: Recognized by customers in Europe and the Americas and highly rated by domestic users; compact, flexible, convenient, and practical. Offers European/American quality at a mid-range price point, delivering excellent value for money.
III. Equipment Specifications:
Model PY-50
Operation Mode: Semi-automatic
Counting Mode: Manual
Efficiency: 25–35 blisters/minute
Application Range: Suitable for all types of Alu-PVC and Alu-Alu blister packs (capsules, tablets, softgels, etc.)
Compatible Blisters: Supports any arrangement of pills/capsules; Dimensions: Length (50–170) × Width (35–140) mm
Tooling Change: No molds required
Motor: Zhejiang Tianli
Speed Controller: Suzhou Xingci Electronics
Power Supply: 220V AC, 50–60Hz
Rated Power: 60W (variable speed)
Machine Weight: 16 kg
Dimensions: 250 × 280 × 320 mm
Material: 304 Stainless Steel
